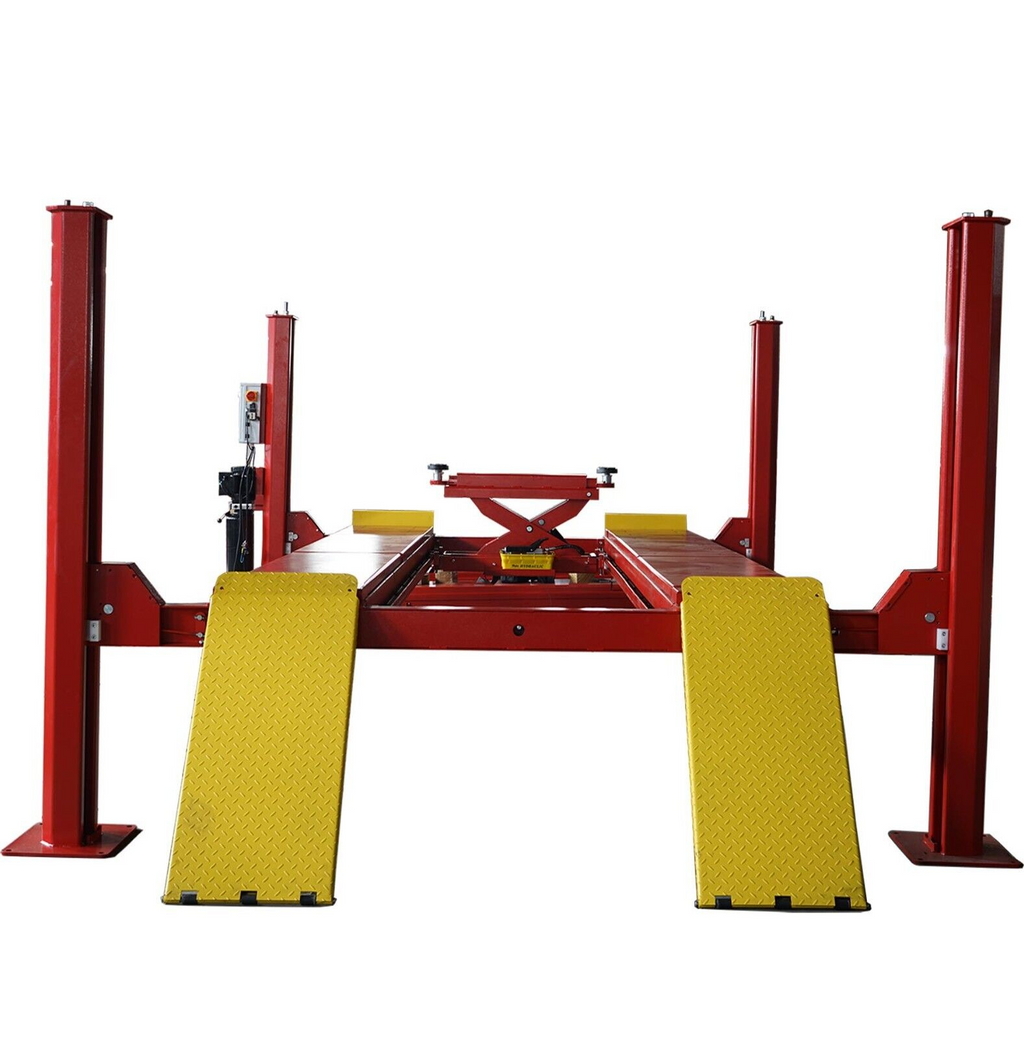

KATOOL KT-4H150 15000 lbs Four Post Alignment Lift
$5,700.00 USD
Skip to product information
KATOOL KT-4H150 15000 lbs Four Post Alignment Lift
$5,700.00 USD
Katool KT-4H150 15,000 LB Four Post Alignment Lift –
Built for Precision & Heavy-Duty Power
Built for Serious Alignment Work
Take on demanding alignment jobs with confidence using the KATOOL KT-4H150. With a powerful 15,000 lb lifting capacity, this commercial-grade four-post alignment lift is designed for full-size trucks, commercial vans, fleet vehicles, and other heavy-duty applications. Its wide, non-skid diamond platforms provide a secure foundation for alignment work and general vehicle service.
Heavy-Duty Safety and Stability
The KT-4H150 is CE certified and tested to 115% of its rated capacity dynamically and 150% statically. A manual single-point safety release allows convenient operation, while four mechanical locking devices with dual locks help keep the lift securely positioned during service. Adjustable safety ladders accommodate vehicles of different sizes and working heights.
Alignment-Ready Design

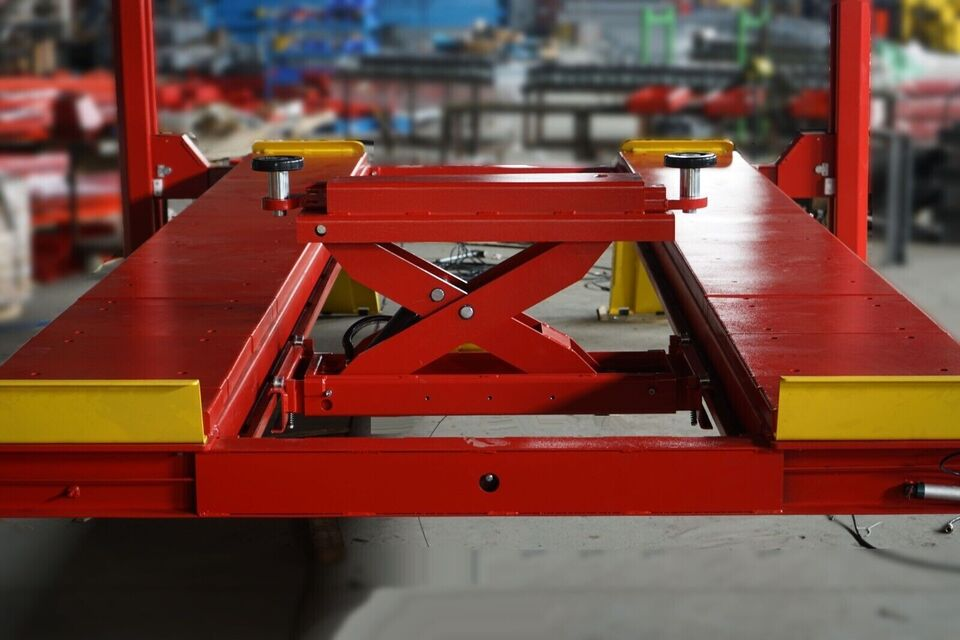

Designed for professional alignment work, the KT-4H150 features rear slip plates and includes an integrated 6,000 lb rolling jack for lifting a vehicle by the axle. Its movable power-side column also provides greater flexibility when planning your installation.
Optional Turntables Available
Front alignment turntables are not included with the KT-4H150. They are available for purchase separately as an optional accessory, allowing you to complete the lift’s alignment setup based on your shop’s needs.
Powerful Hydraulic Performance

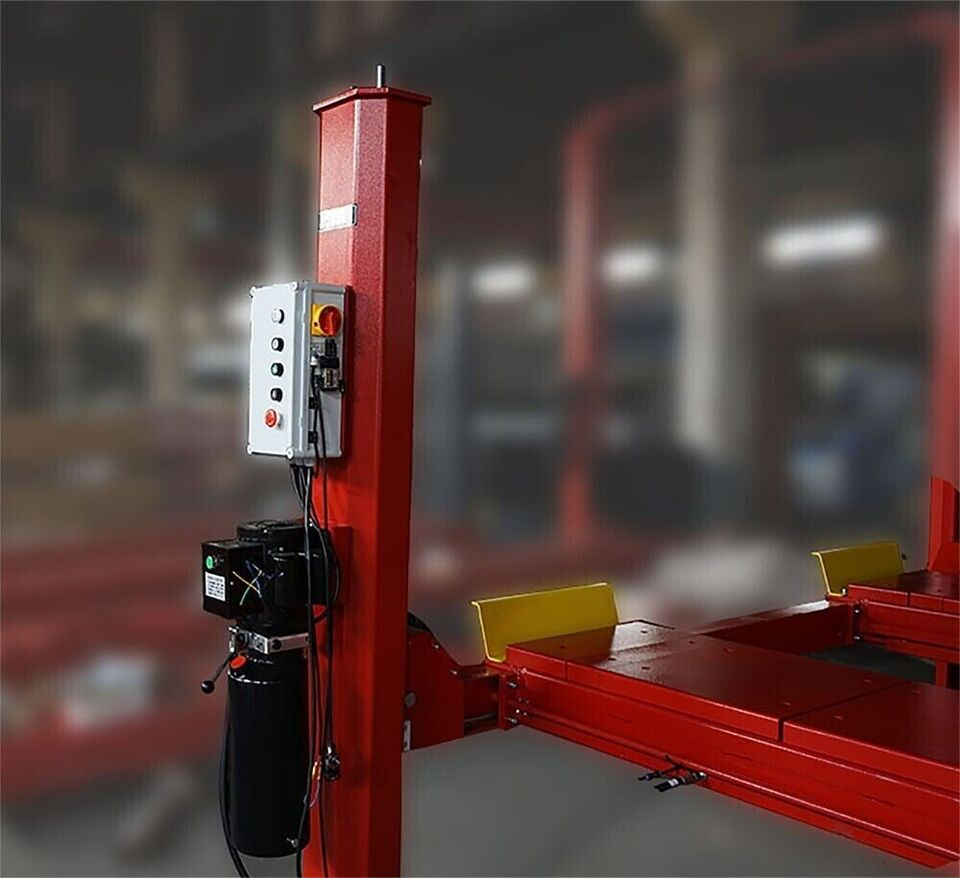

A high-performance 3KW hydraulic motor delivers smooth and dependable lifting power. The standard power configuration is 220V/60Hz/1PH, with an optional 110V power unit available for facilities that require it.
Installation Requirements
The KT-4H150 must be installed on concrete measuring at least 3.93 inches thick, with a minimum strength rating of 3,000 PSI. Always verify that the installation area meets the manufacturer’s requirements before installation.
| Key Features |
|---|
| 15,000 LB Lifting Capacity – Handles the heaviest trucks, vans, and commercial vehicles. |
| CE Certified – Tested to exceed safety and load standards. |
| Manual Single-Point Lock Release – Provides easy and safe control of the lift. |
| Four Mechanical Locks – Equipped with dual safety mechanisms for added security. |
| Non-Skid Diamond Platforms – Provides superior traction during vehicle loading and service. |
| Adjustable Safety Ladder System – Adapts to uneven floors for secure installation. |
| Power-Side Column – Allows flexible placement and easier access to controls. |
| Industrial-Grade 3KW Hydraulic System – Runs on 220V standard (110V optional). |
|
 |

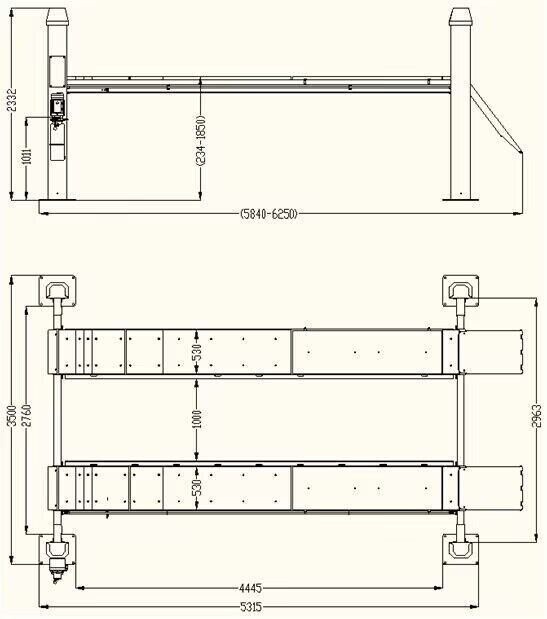

| Specification | Details |
|---|---|
| Lifting Capacity | 15,000 lbs / ~6,803 kg |
| Max. Lifting Height | 92.52 in / 2,350 mm |
| Min. Runway Height | 9.3 in / 236 mm |
| Height of Posts | 85.63 in / 2,175 mm |

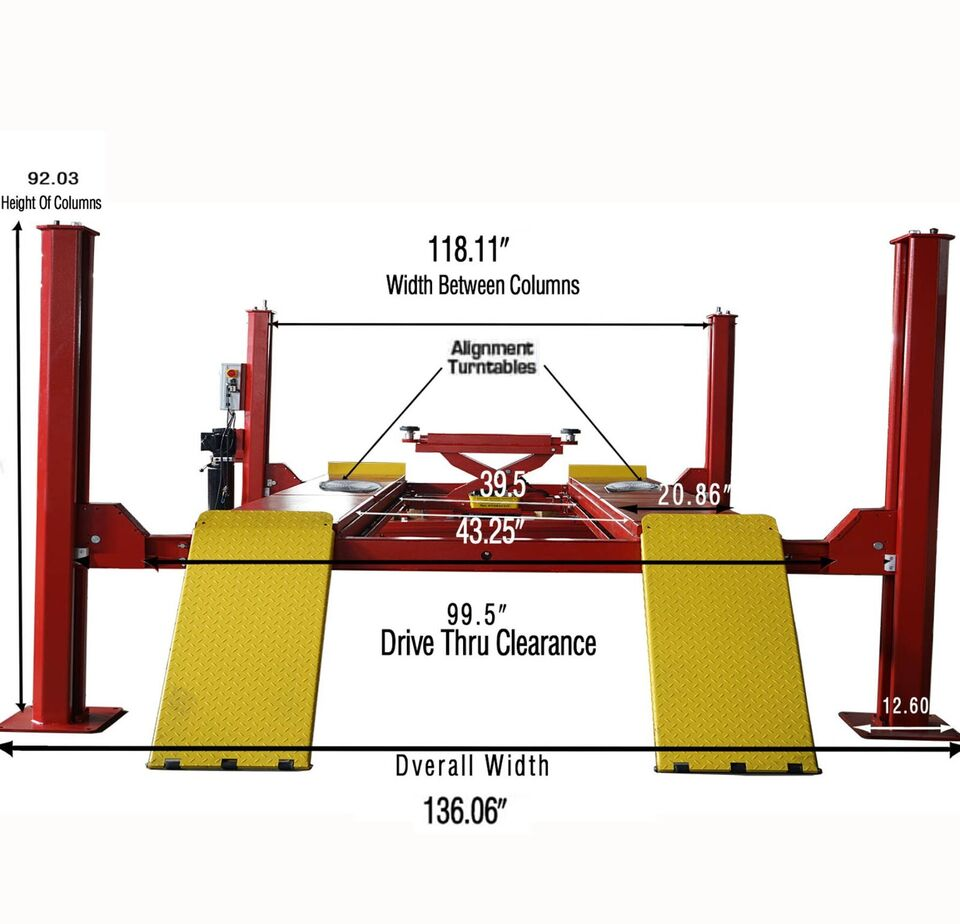

| Width Overall | 136.06 in / 3,456 mm |
| Inside Columns Width | 118.11 in / 3,000 mm |
| Length Overall (with ramps) | 245.31 in / 6,231 mm |
| Lifting Time | 95 sec up / 55 sec down |
| Motor | 220V / 60Hz / 1PH (3KW) |
| Net Weight | 4,850 lbs / 2,200 kg |
Maximize your shop's lifting and alignment capabilities with the Katool KT-4H150—available now at TurboLifts.com. Engineered for strength. Built for precision.
